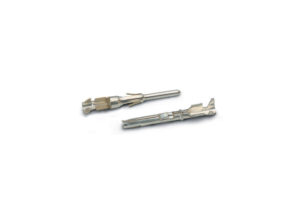

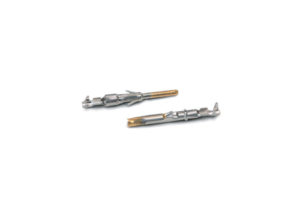

Stamped & Formed Contacts: 1.6 mm diameter for HD stamped & MC Part # 10383400 & 10383500

part number = 1 contact, sold in bags of 100 or 1 reel

*11223000 and 11228000 are sold in reels of 100 only

Crimp Tool: 11147000

Locator:
26-16 AWG: 11147300

Crimp Dies:
26-20 AWG: 1147170
20-16 AWG: 11147180
16-14 AWG: 11147190

Crimp Tool:
(incl. tool, die & locator)
26-20 AWG: 1147004
20-16 AWG: 11147005
16-14 AWG: 11147006

11161000

AWG	mm2	Silver Pin	SilverSocket	Gold Pin	Gold Socket	Reel of 200 Pin	Reel of 200 Socket
26-20	0.14-0.5	11241100	11231100	11243100	11233100	11240700	11230700
20-16	0.5-1.5	11221000	11236100	11221300	11238100	11220700	11235700
16-14	1.5-2.5	11223500	11228500	-	-	11223000*	11228000*

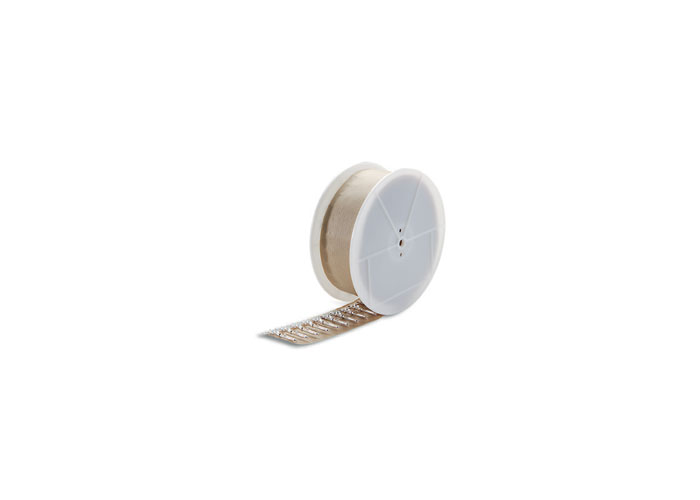

Reel of 2000
26-20	0.14-0.5	1124000	11230000	-	-	11240400	11230400
20-16	0.5-1.5	11220000	11235000	11220100	11235200	11226000	11226500
16-14	1.5-2.5	-	-	-	-	11222700	11227700
