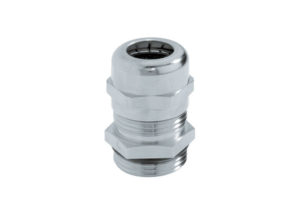

SKINTOP® MS/MSR is a superior quality, liquid-tight, metallic cable gland intended for applications where ruggedness and durability are required. These cable glands are suitable for a wide range of applications, from manufacturing machinery to measurement and control equipment, including automation and robotics.
Material: – Body: Nickel-plated brass – Insert: Polyamide – Bushing: CR – O-ring: NBR
Locknuts: Add SM locknuts, page 534
Temperature Range: – Static: -40°C to +100°C – Dynamic: -25°C to +100°C
Protection: IP68, 5 bar (E xceeds NEMA 6/6P pressure rating) when used with O-ring
Part No. w/Lockout | Part No. w/o Locknut |
---|---|
52015730 | PG 13 |
52015740 | PG 16 |
52015750 | PG 21 |
52015760 | PG 29 |
52015765 | PG 36 |
52015766 | PG 42 |
