SKINTOP® FLEX

SKINTOP® FLEX

Spiral Strain Relief with NPT, PG & Metric Thread

SKINTOP® FLEX is a liquid-tight, spiral strain relief that offers additional safety against overstress and conductor breakage. It is ideally suited for hand held equipment, moving machinery, and robotics.

• Superior bending protection for cable conservation and
  functional reliability
• The heavy duty SKINTOP® design provides great pullout
  strength and very reliable strain relief
• Superior integrated locking mechanism includes an internal
  ratchet for vibration-proof protection
• Multi-trapezoidal thread requires just one twist to tighten
• Generous high-quality neoprene bushing provides a liquidtight
  and dust-proof hermetic seal

Technical Data

• Material:
  – Body: Polyamide
  – Bushing: CR
• Locknuts: Included with PG & metric sizes,
  NPT locknuts available, page 533
• Temperature Range:
  – NPT & PG: -20°C to +80°C
  – Metric: -20°C to +100°C

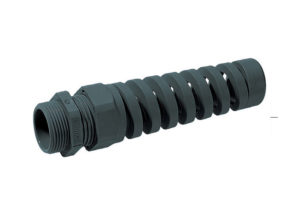

• Color: Black (RAL 9005), UV resistant

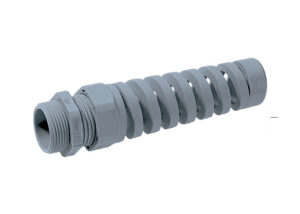

  Gray (RAL 7001)
• Protection: 70 PSI
• Seal: IP68, 5 bar (Exceeds NEMA 6/6P pressure rating)
