-20C to +100C
Light gray (RAL 7035)
IP68, 5 bar

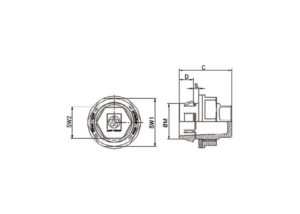

| Part No. | Thread Type / Size | Wall Thickness (in) | Wrenching Flats SW1 | Wrenching Flats SW2 | Overall Length (in) | Thread Length (in) | Standard Pack Size |
|---|---|---|---|---|---|---|---|
| 52109013 | M16 | 0.04-0.16 | 0.55 | 0.87 | 1.12 | 0.31 | 50 |
| 52109014 | M20 | 0.04-0.16 | 0.71 | 1.06 | 1.16 | 0.31 | 25 |
| 52109015 | M25 | 0.04-0.16 | 0.87 | 0.55 | 1.20 | 0.31 | 25 |
