IceCube Flowmeters with Brass or Nylon

IceCube Flowmeters with Brass or Nylon Ends

Smartflow mechanical flowmeters are durable, vane-operated devices that provide visual indication of flow rate in many different styles and sizes.  Rugged wetted parts are compatible with many process liquids.

Optional temperature and pressure gauges add functionality and flexibility to Smartflow Flowmeters.  Brass quick-connect fittings are available on the smaller flowmeters to create an excellent, portable tool for determining flow and locating clogged lines.

Features and Benefits

  • Compact size works well in restricted-space locations.
  • Rugged construction gives years of dependable service.
  • Variety of inlet sizes provides exactly the right connection.
  • 210°F (99°C) Temperature Rating allows installation into a wide range of applications.
  • Optional Temperature and Pressure Gauges give instant access to pressure and temperature information in addition to flow in one unit.
  • No Mounting Restrictions ease installation in any position without extra brackets or hardware.

Galvanic corrosion may occur in anodized aluminum components when installed in electrical connection with more noble metals such as copper. Use appropriate installation practices. For best performance, mechanical flowmeters should be installed in the vertical position with the flow moving forwards.

Turbulent Flow

Injection molders know that a certain rate of flow is needed to achieve turbulent flow in cooling lines. This concept applies to most cooling applications using a water-based coolant
mixture. Charts below are for reference only. Turbulent Flow Rate is approximate based on Reynolds Number of 4000.

Wetted Parts and Materials

End Caps: Brass or Glass Filled Nylon
Body Polysulfone
Vane: Glass-Filled Nylon
Spring: 302 Stainless Steel
O-Rings: EPDM
Cap Screws: Stainless Steel
Optional Gauge Block: Brass
Optional Quick-Connect Fittings: Brass

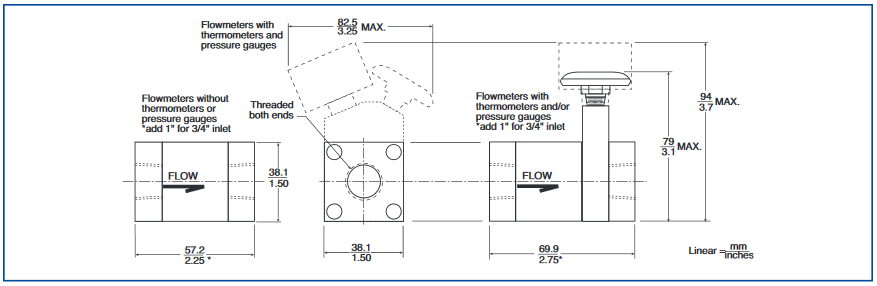

Specifications

Flow Accuracy: + 10% full scale
Operating Temperature max: 210 degrees Fahrenheit (99 Celsius)
Operating Pressure max: 100 psi (6.9 bar)
Optional Thermometer: 0 degrees to 250 degrees Fahrenheit, (-20 degrees to 120 degrees Celsius)
Optional Pressure Gauge: +3% accuracy (full scale)

15

F3 D3 25
Inlet size Flow Range
Brass Ends 0.2-1.5 gpm (gallons per minute)
1/4″ NPT(F) F2 25 0.5 – 2.5 gpm
1/4″ BSPP(F) F2B 80 1.0 – 8.0 gpm
3/8″ NPT(F) F3
3/8″ BSPP(F) F3B 100 2-10 lpm (liters per minute)
1/2″ NPT(F) F4 200 5-20 lpm
1/2″ BSPP(F) F4B 300 4-30 lpm
3/4″ NPT(F) F6
3/4″ F6B F6B
Accessories
A Flowmeter only
Nylon Ends B Thermometer
1/4″ NPT(F) FP2 C1 Thermometer and 30 psi Pressure Gauge
1/4″ BSPP(F) FP2B C2 Thermometer and 60 psi Pressure Gauge
3/8″ NPT(F) FP3 C3 Thermometer and 100 psi Pressure Gauge
3/8″ BSPP(F) FP3B CL Thermometer and and Liquid-filled Pressure Gauge (100psi)
1/2″ NPT(F) FP4 D1 *Thermometer, 30 psi Pressure Gague Quick Change Socket and Plug
D2 *Thermometer, 60 psi Pressure Gauge Quick Change Socket and Plug
D2 *Thermometer, 100 psi Pressure Gague Quick Change Socket and Plug
DL *Thermometer, liquid-filled Pressure Gauge (100 psi), Quick Change Socket and Plug
E *Thermometer and Quick Change Socket and Plug
F1 30 psi Pressure Gauge
F2 60 psi Pressure Gauge
F3 100 psi Pressure Gauge
FL Liquid Filled Pressure Gauge (100 psi)

IceCube Flowmeters with Brass or Nylon Ends - F3-D3-25
