Specifications: DIN 43652
Protection Class: NEMA4, NEMA 12, IP65
Temperature Range: -40C to + 125C
Material: Powder-coated aluminum alloy
| Entry Size PG | Entry Size NPT | Entry Size Metric | Part No PG | Part No NPT | part No Metric* | complete Installation | Complete Installation | Complete Installation | Complete Installation |
|---|---|---|---|---|---|---|---|---|---|

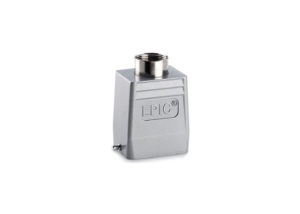

| Top Entry | |||||||||
| 21 | 3/4" | 25 | 700202 | 700202NP | 79020200 | 53015050 | 52015750 | 53111030 | 53112030 |
| 29 | 1" | 32 | 700204R | 700204NP | 79020400 | 53015060 | 52015760 | 53111040 | 53112040 |

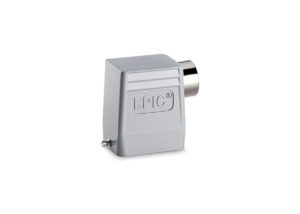

| Side Entry | |||||||||
| 21 | 3/4" | 25 | 700222 | 700222NP | 79022200 | 53015050 | 52015750 | 53111030 | 53112030 |
| 29 | 1" | 32 | 700224R | 700224NP | 79022400 | 53015060 | 52015760 | 53111040 | 53112040 |
