Protection Class: NEMA 4, NEMA 12, IP65| Size Entry PG | Size Entry NPT | Size Entry Metric | Material | No Gland: Part No PG | No Gland: Part No. NPT | No Gland: Part No. Metric | With Gland: Part No PG | With Gland: Part No. Metric |
|---|---|---|---|---|---|---|---|---|

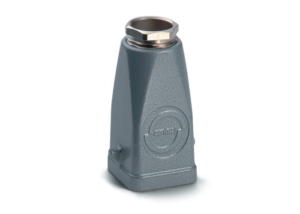

| TOP ENTRY | ||||||||
| 11 | 1/2" | 20 | Die-cast Zinc | 10512100 | 105121NP | 19512100 | 10426500 | 19426500 |
| 11 | 1/2" | 20 | Black Plastic | 10425500 | 104255NP | 19425500 | 10426700 | - |
| 11 | 1/2" | 20 | Gray Plastic | 10426000 | 104260NP | 19426000 | 10426400 | - |

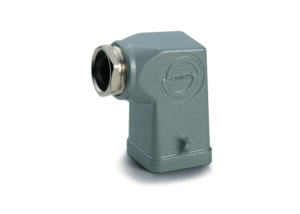

| SIDE ENTRY | ||||||||
| 11 | 1/2" | 20 | Die-cast Zinc | 10512300 | 105123NP | 19512300 | 10427500 | 19427500 |
| 11 | 1/2" | 20 | Black Plastic | 10427300 | 104273NP | 19427300 | 10620600 | - |
| 11 | 1/2" | 20 | Gray Plastic | 10427000 | 104270NP | 19427000 | 10427100 | - |
