Global Thinswitch : TW-222-LR

global-thinswitch

Global Thinswitch Liquid-Resistant 3mm, 4mm, 3/16″ Height

Smartflow Global Thinswitch Limit Switch helps prevent accidental closure in injection molds by verifying ejector plate return in injection molds with 3mm, 4mm, or 2/16″ rest buttons, and where occasional water or oil spray is present.  A polyurethane dome covers the actuator spring, protecting internal gold switch contacts from environmental contamination.

A special mounting bracket aids installation from the edge of the model.  The bracket allows molders to slide the Thinswitch into place without disassembling the mold or using screws to hold the switch n place.  Spacers placed under the switch accommodate different rest button heights.

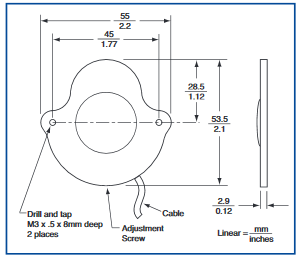

TW-222-LR

Specifications

Operating Temperature – 80°C (176°) max.
Switching – SPST (normally open)
Contacts – BeCu with Hard Gold Plating

Rated Current (Resistive) at 24VDC vs. Operating Temperature
mAmps °C °F
100 29.4 85
80 68.3 155
70 79.4 175

Materials

body – Fiberglass – Reinforced Nylon
Dome – Polyrethane
Back Cover – Polyester Film
Mounting Bracket – Stainless Steel
Wire Leads – 28ga stranded, 2 conductor, shielded cable, 2m long, ends stripped and tinned.
