Flexible Tubular Heater

Flexible Tubular Heater

Hot Flex PDF DOWNLOAD

• Easy installation with a uniform finish
• Can be formed by hand
• Stored in a straight condition to save storage space
• No special installation tools required
• Patented technology ensures industry leading heat transfer

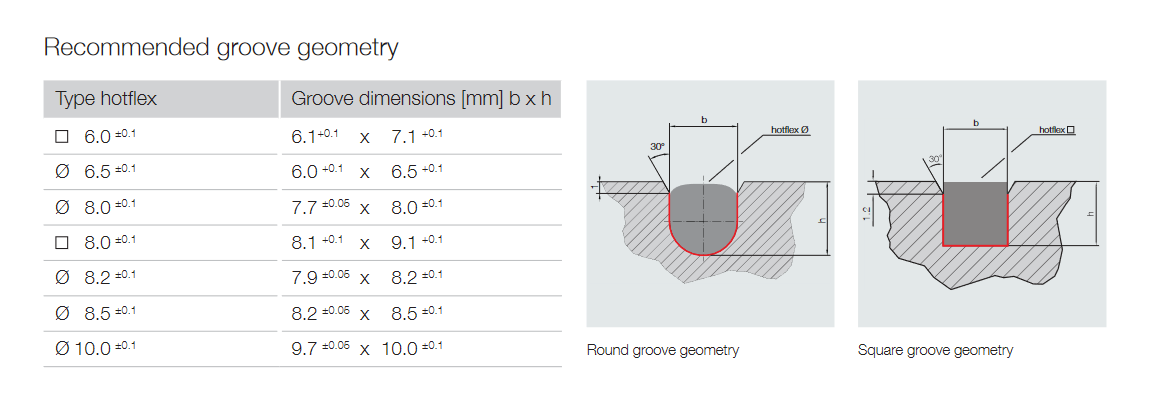

• Up to 75% sheath contact with round and square hotflex heaters when recommended groove geometry is followed
• Rapid heat-up times
• Minimal temperature difference between heater sheath and heated tool
• 3-dimensional groove geometry possible
• Industry’s smallest bending radius
• Hotflex’s flexibility enables heat to be located where it is needed; an improvement over rigid cartridge heaters
• Reduced energy costs; tool mass can be reduced

Technical Key Features

• Sheath material : stainless steel
• Sheath temperature of heating element: max 700 C / 1290 F
• Standard connection voltage: 230V
• High voltage test* : 1000 V AC
• Insulation resistance* : > 5 MQ at 500 V DC
• Leakage current* : <0.5 mA at 253 V AC
• Wattage tolerance: +10%
• Length tolerance: +1.5%

Options

• Bendable unheated zones
• Connection voltage from 12V to 250V
• Individual length
• Individual wattage
• Individual connection options

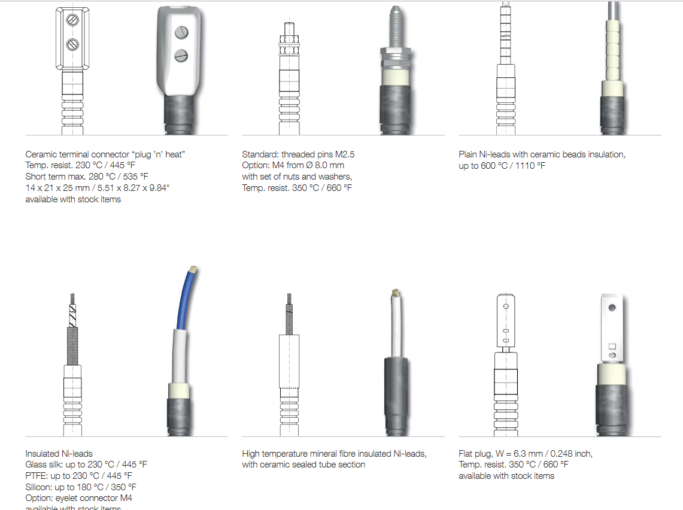

Connector Types:
