FasTie® Quick Ejector Tie-In System quickly “ties-in” the mold ejector plate to the press ejection system in an injection molding press, dramatically reducing mold change time.
In an injection molding press, the FasTie® system quickly “ties-in” the mold ejector plate to the press ejection system, dramatically reducing mold change time. The greatest savings are realized in presses where space is limited and the ejector system is difficult to tie in using solid knockout bars.

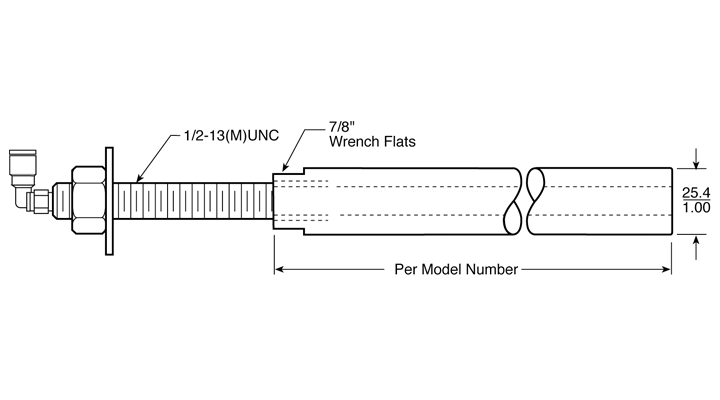

1/2-13 threads one end only
| Model Number | Length |
| FTBB-50-8 | 8″ |
| FTBB-50-10 | 10″ |
| FTBB-50-12 | 12″ |
| FTBB-50-14 | 14″ |
1/2-13 threads both ends
| Model Number | Length |
| SBAB-50-6 | 6″ |
| SBAB-50-7 | 7″ |
| SBAB-50-8 | 8″ |
| SBAB-50-9 | 9″ |
| SBAB-50-10 | 10″ |
| SBAB-50-11 | 11″ |
| SBAB-50-12 | 12″ |
| SBAB-50-13 | 13″ |
| SBAB-50-14 | 14″ |
| FTCA-50 | 1/2-13 |
| FTCA-63 | 5/8-11 |
| FTCA-M12 | M12 x 1.75 |
| FTCA-M16 | M16 x 2 |
| FTCA-M20 | M20 x 2.5 |

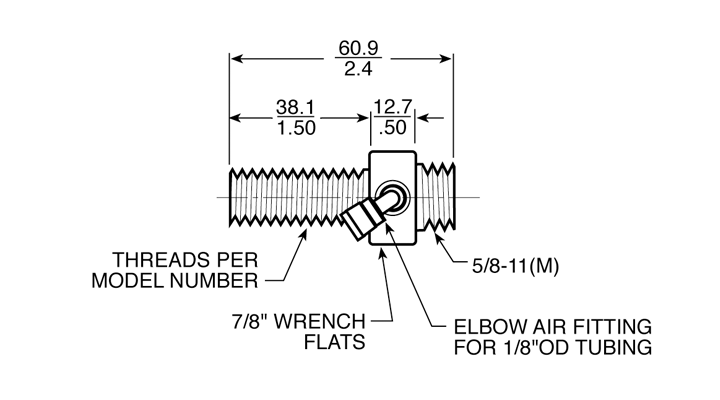

| Model Number | Thread Size |
|---|---|
| FTCA-63-63 | 5/8 – 11 |
| FTCA – M16-63 | M16 x 2 |

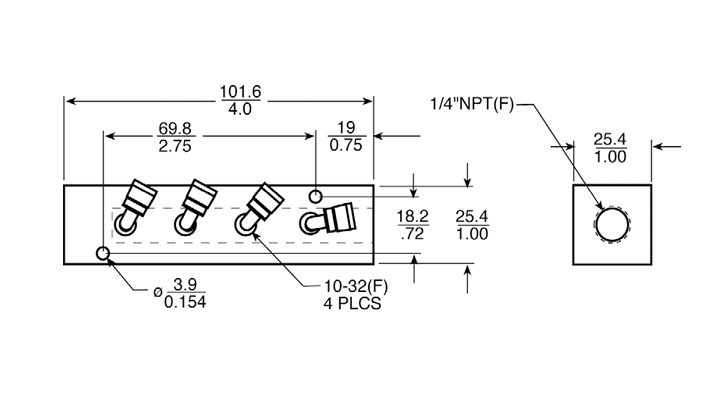

Includes manifold, (4) -1/8″ elbow pneumatic fitting, (4) 1/8″ x 4ft nylon tubing
Model Number : FTAM-100
