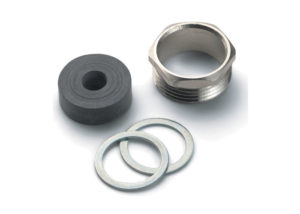

EPIC SM Glands : Nickel-plated Brass

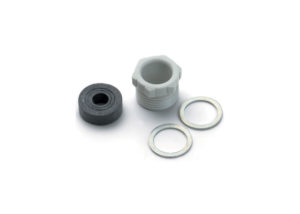

EPIC SP Glands: Polystyrol
EPIC SM Glands: -40C to +125C
EPIC SP Glands: -20C to +55C

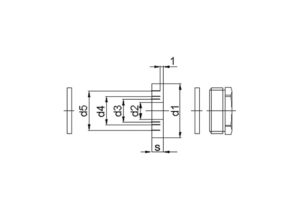

| Size | EPIC SM | EPIC SP | d1 | d2 | d2 Cable OD | d3 | d3 Cable OD | d4 | d4 Cable OD | d5 | d5 Cable OD | s | EPIC SM Wrench Size (mm) | EPIC SP Wrench Size (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| EPIC SM/SP: PG Threads | ||||||||||||||
| PG9 | 12954100 | - | 13.3 | 5 | 4-6 | 7.5 | 6.5-8.5 | 10 | 9-11 | - | - | 5.5 | 15 | - |
| PG11 | 12954200 | 12957100 | 16.5 | 7.5 | 6.5-8.5 | 10 | 9-11 | 12.5 | 11.5-13.5 | - | - | 6 | 18 | 19 |
| PG13 | 12954300 | - | 18.3 | 7.5 | 6.5-8.5 | 10 | 9-11 | 12.5 | 11.5-13.5 | - | - | 6 | 20 | 21 |
| PG16 | 12954400 | - | 20.4 | 7.5 | 6.5-8.5 | 10 | 9-11 | 12.5 | 11.5-13.5 | 15 | 14-16 | 7 | 22 | 23 |
| PG21 | 12964500 | - | 25.9 | 10 | 9-11 | 13 | 12-14 | 16 | 15-17 | 19 | 18-20 | 8 | 28 | 30 |
| PG29 | 12954600 | - | 34.7 | 18 | 17-19 | 21 | 20-22 | 24 | 23-25 | 27 | 26-28 | 9.5 | 37 | - |
| PG36 | 12954700 | - | 44.7 | 24 | 23-25 | 27 | 26-28 | 30 | 29-31 | 33 | 32-34 | 12 | 47 | - |
| PG42 | 12954800 | - | 51.7 | 30 | 29-31 | 33 | 32-34 | 36 | 35-37 | 39 | 38-40 | 14 | 54 | - |
| EPIC SM-M: Metric Threads | ||||||||||||||
| M12 | 71200000 | N/A | 10 | 5 | 4-6 | - | - | - | - | - | - | 5 | 12 | 5 |
| M20 | 71200200 | N/A | 17.6 | 4 | 3-5 | 7 | 6-8 | 10 | 9-11 | 13 | 12-14 | 6 | 20 | 5 |
| M25 | 71200300 | N/A | 22.6 | 8.5 | 7.5-9.5 | 11.5 | 10.5-12.5 | 14.5 | 13.5-15.5 | 17.5 | 16.5-18.5 | 7.5 | 25 | 5 |
| M32 | 71200400 | N/A | 29.6 | 16 | 15-17 | 19 | 18-20 | 22 | 21-23 | 25 | 24-26 | 9.5 | 32 | 5 |
| M40 | 71200500 | N/A | 37.6 | 23 | 22-24 | 26 | 25-27 | 29 | 23-28 | 32 | 31-33 | 12 | 40 | 5 |
