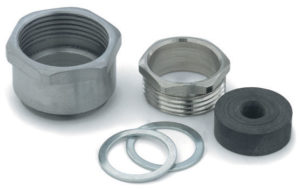

Material: Nickel-plated Brass
Temperature Range: -40C to +125C
Protection Class: IP54 (DIN 36320)

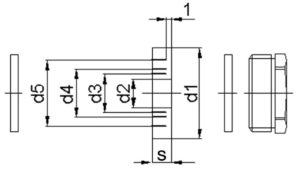

| Size | Part Number | d1 | d2 | d2 Cable OD | d3 | d3 Cable OD | d4 | d4 Cable Od | d5 | d5 Cable OD | s | Wrench Size (mm) | Standard Pack |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| EPIC CM-M: Metric Threads | |||||||||||||
| M20 | 71201200 | 17.6 | 4 | 3-5 | 7 | 6-8 | 10 | 9-11 | 13 | 12-14 | 6 | 23 | 5 |
| M25 | 71201300 | 22.6 | 8.5 | 7.5-9.5 | 11.5 | 10.5-12.5 | 14.5 | 13.5-15.5 | 17.5 | 16.5-18.5 | 7.5 | 28 | 5 |
| M32 | 71201400 | 29.6 | 16 | 15-17 | 19 | 18-20 | 22 | 21-23 | 25 | 24-26 | 9.5 | 36 | 5 |
| M40 | 71201500 | 37.6 | 23 | 22-24 | 26 | 25-27 | 29 | 23-28 | 32 | 31-33 | 12 | 46 | 5 |
