DuoFlow Aluminum Manifolds

smartflow-duoflow-manifold

Available Models

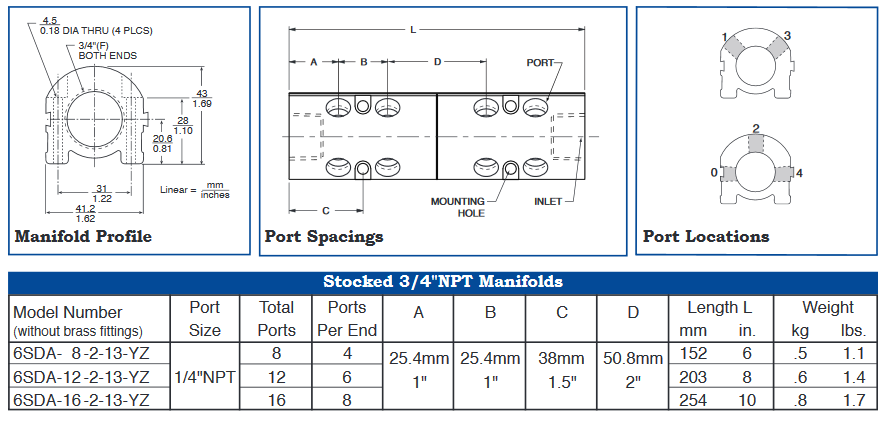

  • 6SDA – 3/4″ Duoflow Aluminum Manifolds
  • 8SDA – 1″ Duoflow Aluminum Manifolds
  • 12SDA – 1-1/2″ Duoflow Aluminum Manifolds

Smartflow Duoflow Manifolds are robust extruded aluminum joined together by a stainless steel center plug.  Red and blue color anodizing protects the manifolds from corrosion and denotes supply or return function.  No end plug is needed.

The Duoflow design provides a shorter footprint specifically for mountaing a manifold directly to an injection mold, or where space is limited.  Port spacing is narrow for installation of hose barbs or quick disconnect fittings only.  Custom manifolds are needed if ball valves will be installed.

Tool change time is significantly decreased by mounting manifolds directly to molds in storage.  Water hookup is simplified to “Supply” and “Return” lines versus individual water lines for every circuit.



Features and Benefits

  • Shorter Length for easier mounting directly to injection molds
  • Mold-Mount to speed mold changes
  • Economical, Proven Design for reliability
  • Optional Quick Disconnect Fittings for convenience and ease of installation.
  • Supports Scientific Cooling through consistent, repeatable water connections.



Specifications

Inlet Sizes: 3/4″, 1″ or 1-1/2 “, NPT standard, British Threads optional
Port Sizes: 1/4″, 3/8″ & 1/2”, NPT standard, British threads optional
Operating Pressure Max: 50 psi (10 bar)
Operating Temperature max: 210F (99 C)
Body Material: Anodized Aluminum
Divider: Stainless Steel
O-Rings: EPDM
