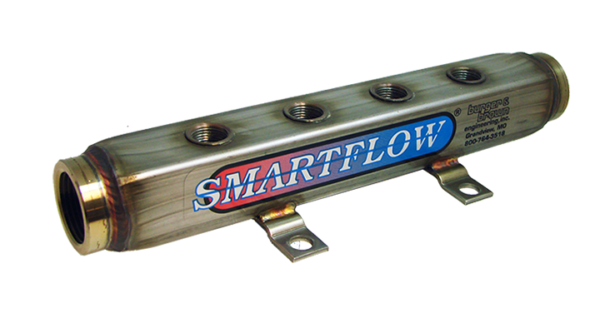

Stainless Steel Manifolds with Low Profile Ports (NPT Only)
Smartflow stainless steel manifolds are formed and welded from 304 stainless steel. The manifolds are 100% leak tested for quality assurance before shipping. Stainless steel manifolds with low profile ports offer an economical alternative to our conventional port manifolds.
Smartflow stainless steel manifolds are excellent for high-flow applications where chemical compatibility and corrosion-resistance are important. Manifold bodies are made from 1-1/2″ or 2″ square tube to allow maximum flow. Custom modifications are easily handled to provide the exact configuration you need.
Specifications
- Material: 304 Stainless Steel
- Temperature Rating: up to 250 degrees Farenheit / 121 degrees Celsius
- Maximum Pressure Ratings: Gas: 125 psi, Liquid: 250 psi
Model Numbers and Dimensions (3/8″ & 1/2″ NPT ports only)
Single Manifolds | Parallel Manifolds | Dimension A | Dimension L | Dimension H | |
1″ Inlet | 8SL – 4 – * – 2 -A 8SL – 6 – * – 2 – A |
8PSL – 8 – * – 2 -A 8PSL – 12 – * – 2 – A |
102mm/4″ 203 / 8″ |
283mm/11.13″ 384mm/15.13″ |
51mm 2″ max |
8SL – 8 – * – 2 – A 8SL – 10 – * -2 -A 8SL – 12 -* -2 -A |
8PSL – 16 – * – 2 -A 8PSL -20 – *- 2 – A 8PSL – 24 – * – 2 – A |
305mm/12″ 406mm/16″ 508mm/20″ |
486mm/19.13″ 587mm/23.13″ 689mm/27.13″ |
||
8SL – 14 – * – 2 -A 8SL – 16 -* – 2 -A |
8PSL-28 – * – 2 -A 8PSL-32 -* -2 – A |
610mm/24″ 711mm/28″ |
791mm/31.13″ 892mm/35.13″ |
||
1-1/2″ Inlet | 12SL – 4 – * – 2 – A 12SL – 6 – * – 2 – A |
12PSL – 8 – * – 2 – A 12PSL – 12 – * – 2 – A |
102mm/4″ 203 / 8″ |
283mm/11.13″ 384mm/15.13″ |
64mm 2.5″ max |
12SL – 8 – * – 2 – A 12SL – 10 – * -2 – A 12SL – 12 – * -2 – A |
12PSL – 16 – * – 2 -A 12PSL -20 – * – 2 – A 12PSL – 24 – * – 2 – A |
305mm/12″ 406mm/16″ 508mm/20″ |
486mm/19.13″ 587mm/23.13″ 689mm/27.13″ |
||
12SL – 14 – * – 2 – A 12SL – 16 -* – 2 – A |
12PSL – 28 – * – 2 – A 12PSL-32 – * -2 – A |
610mm/24″ 711mm/28″ |
791mm/31.13″ 892mm/35.13″ |
